How to get started with the P630 terminal?

Power-On and Off the Terminal

1. Unscrew and remove the back cover of the terminal by sliding it in the direction indicated by the arrow.
2. Plug the power cable into the port at the back of the terminal, then reattach the cover.
3. Insert the AC power cable into a wall outlet or power board.
4. Turning the terminal on: Press and hold the power button (located on the left-hand side of the terminal) for approximately 3 seconds until the start-up screen appears.
5. Turning the terminal off: To shut down the terminal, press and hold the power button for about 3 seconds, then tap the on-screen ‘Power off’ button. Alternatively, press and hold the power button for 10 seconds to force the terminal to turn off.
   ⚠️ Important: Ensure the terminal is connected to a power source before attempting to power it on.

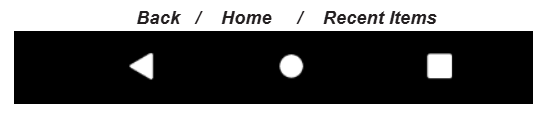

Notification Keys

Use the navigation keys at the bottom of the terminal for quick navigation.

Navigation Bar

The Notification bar at the top of the screen displays status icons.

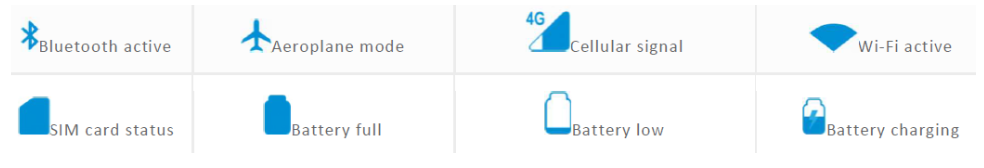

Status Icons

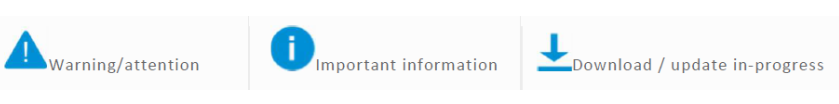

Notification Icons
Swipe down from the top of the screen to see notification cards for more information.

Quick settings icons

You can access the Quick Settings panel from any screen (excluding some payment screens).
Swipe down from the Notification bar for quick access to notification cards, settings, and more. To close the panel, swipe up from the bottom of the screen or tap the screen below the panel.

1. Tap a quick setting icon to turn that setting on or off
2. Touch and hold a quick setting icon to open the setting configuration screen
3. Tap the expand icon or drag the panel down to view all quick settings
4. In the expanded view, you can use the screen brightness slider at the top of the panel to adjust screen brightness
5. Tap the setting icon to access the Settings menu
6. Tap the Edit icon to add or remove shortcuts to the Quick Settings panel

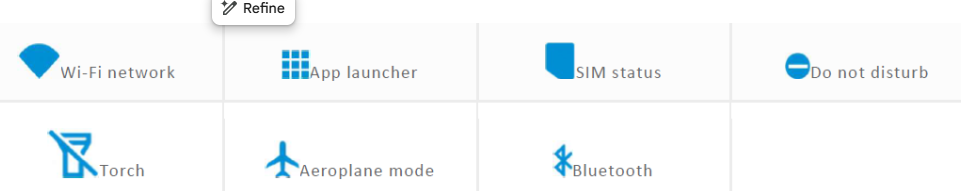

Quick settings icons:

NOTE: Not all available Android quick setting icons work on your EFTPOS terminal.

Notification Cards

On the Quick Settings panel, you can swipe down the list of notification cards to see more detail about your notifications.
